EK-Pro CPU WB 4677 Rack Ni + Acetal

Product EAN: 3831109861110

Enterprise-grade 1U-compatible water block for LGA 4677 Intel Xeon processors with four low-profile G1/8" threaded side ports for server rack deployments.

Compatibility: LGA 4677
Platform: Intel

Overview

1U Server Cooling for Intel Xeon LGA 4677

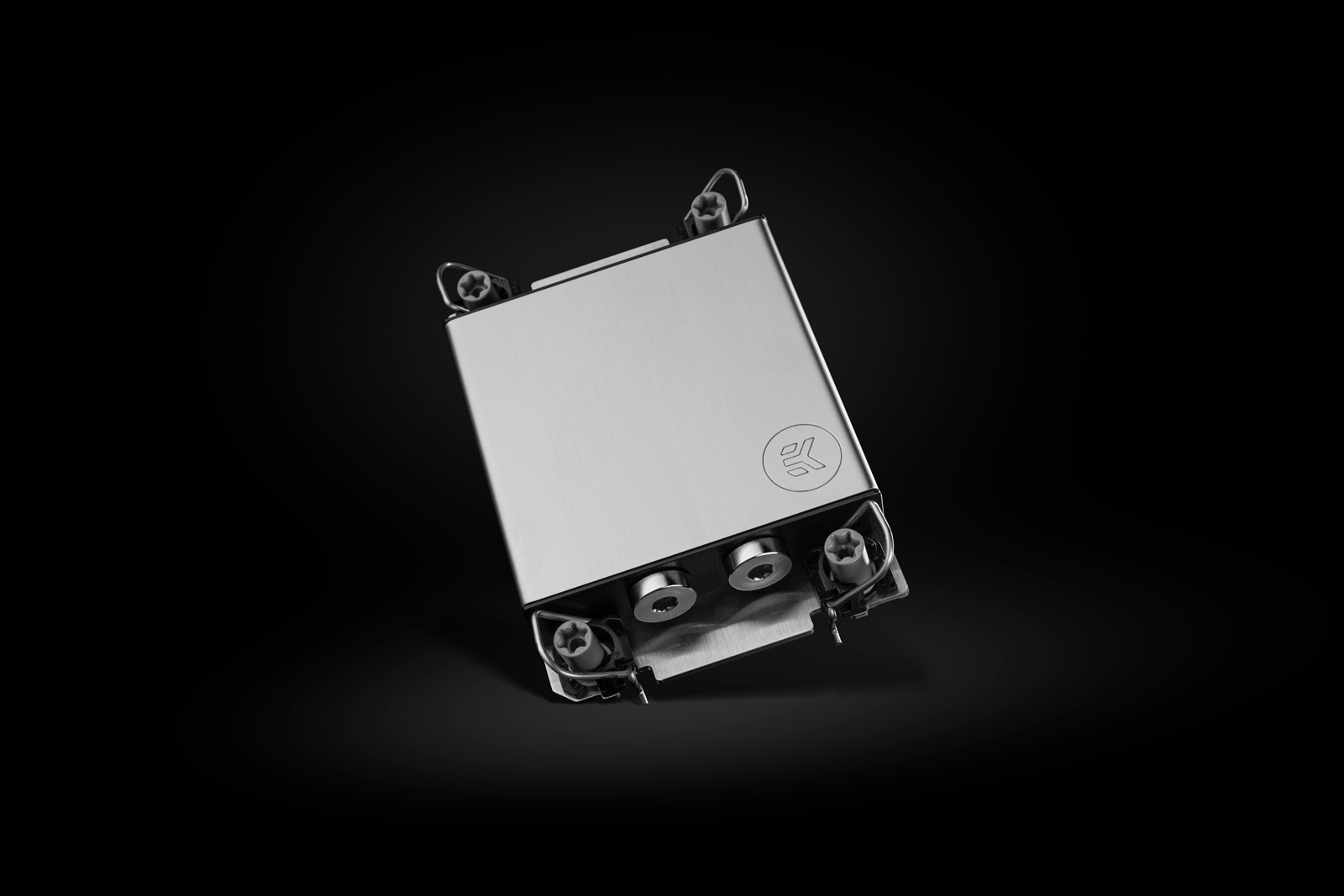

The EK-Pro CPU WB 4677 Rack Ni + Acetal is an enterprise-grade water block designed for LGA 4677 Intel Xeon processors, fitting 1U chassis for server rack use. It boasts four G1/8" threaded side ports for low-profile applications.

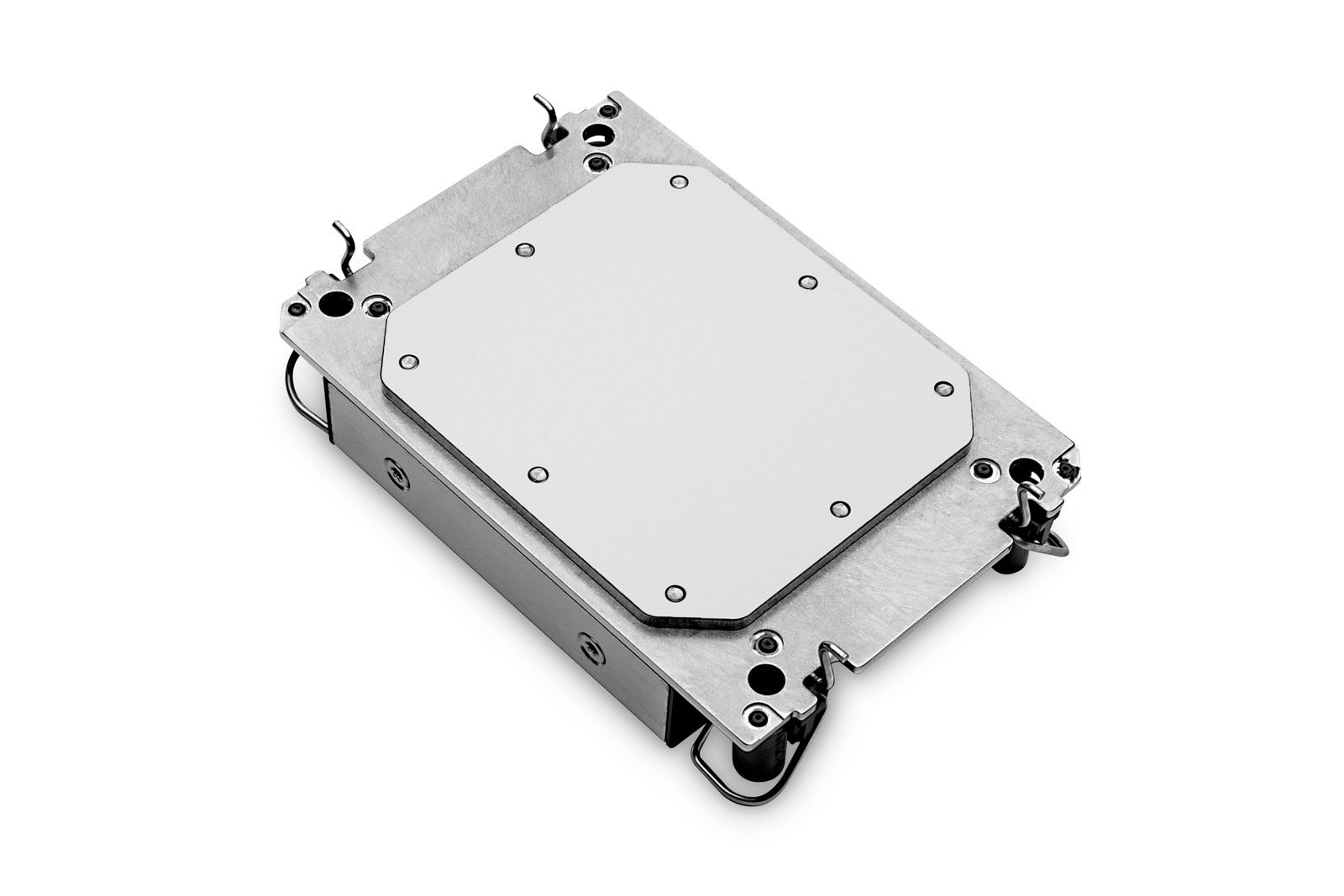

Crafted for performance, reliability, and serviceability, it ensures top thermal performance and connectivity for liquid-cooled high-density computing systems. Its copper base is nickel electroplated, while the top is CNC machined from black POM Acetal, with a stainless steel hold-down bracket.

1U Server Cooling for Intel Xeon LGA 4677

Key Engineering

Three design decisions worth calling out

1U Rack Compatible

Four side-mounted G1/8" ports keep the block within 1U height, making it suitable for dense rack deployments of Intel Xeon LGA 4677 servers.

T30 Torx Hold-Down Bracket

Stainless steel hold-down bracket with T30 Torx fasteners provides consistent, measured clamping force for reliable long-term sealing on the LGA 4677 socket.

Nickel-Plated Copper + POM Acetal

Electroplated copper base and CNC-machined black POM Acetal top offer the corrosion resistance and mechanical durability required in continuously operating server environments.

Technical data

Full datasheet

Dimensions (L x H x W)	118 x 78 x 22.2 mm
Materials	Nickel-plated copper, stainless steel, POM
Mass	0.534 kg
Ports	4 x G1/8"

Mounting method	T30 Torx
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

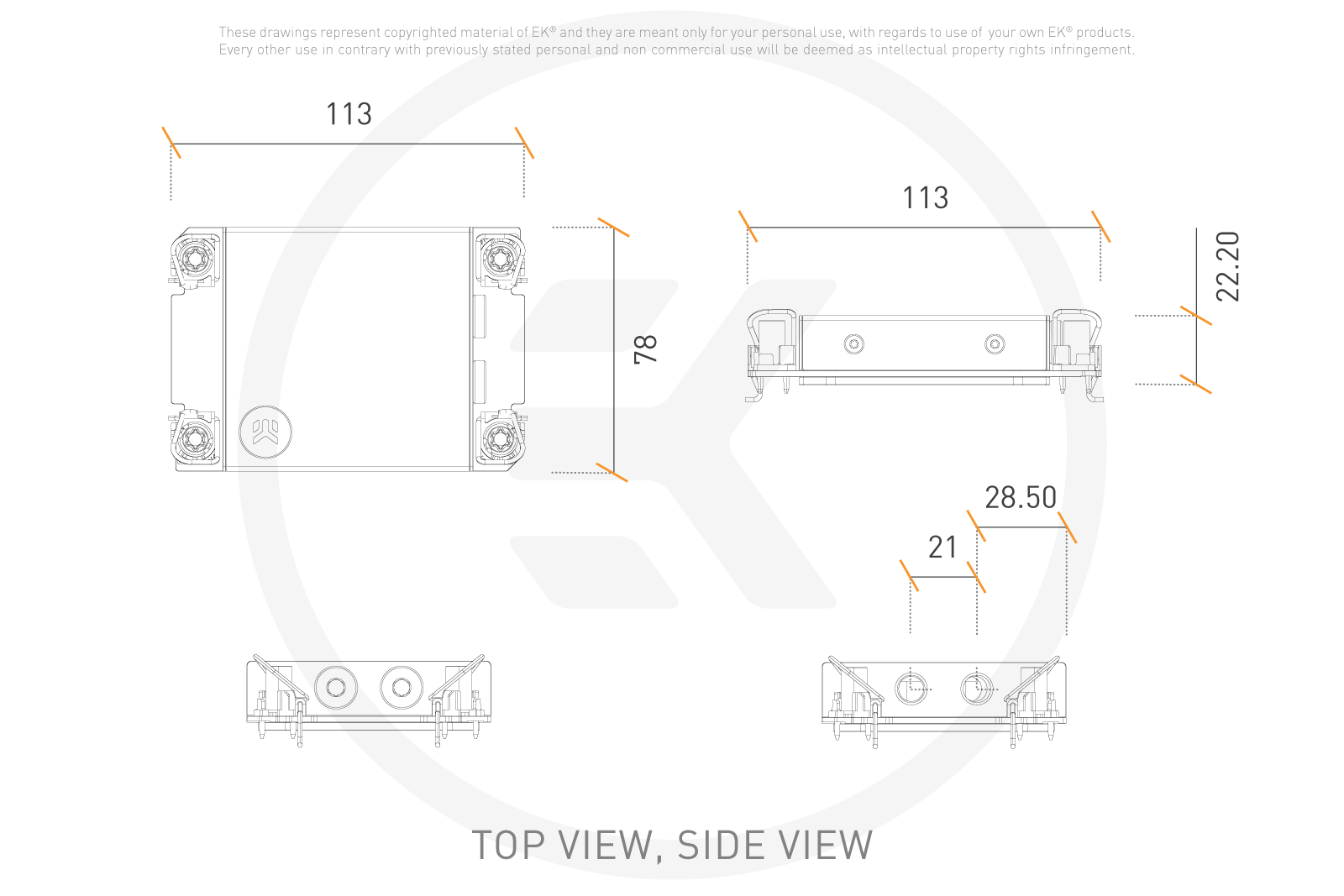

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent components and chassis walls before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Socket Compatibility

Compatible exclusively with LGA 4677 Intel Xeon processors. Designed for 1U rack server chassis where low-profile side port access is required.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro CPU WB 4677 Rack Ni + Acetal water block
· 2x EK plug G 1/8”
· EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
· 1x Torx T30 Key - 1x 5mm Allen Key
· Thermal grease (1g)

1U-Ready Liquid Cooling for Intel Xeon LGA 4677

Deploy with EK-Pro QDC kits and manifolds for a serviceable, rack-optimised liquid cooling loop on 4th gen Intel Xeon server platforms.
