EK-Pro CPU WB SP5 Rack Ni + Acetal

Product EAN: 3831109904084

High-performance 1U-compatible water block for AMD Socket SP5 processors with up to 96 cores, featuring four G1/8" side ports for dense dual-socket server environments.

Compatibility: AMD Socket SP5 (LGA 6096)
Platform: AMD

Overview

1U Liquid Cooling for AMD EPYC SP5 in Dual-Socket Servers

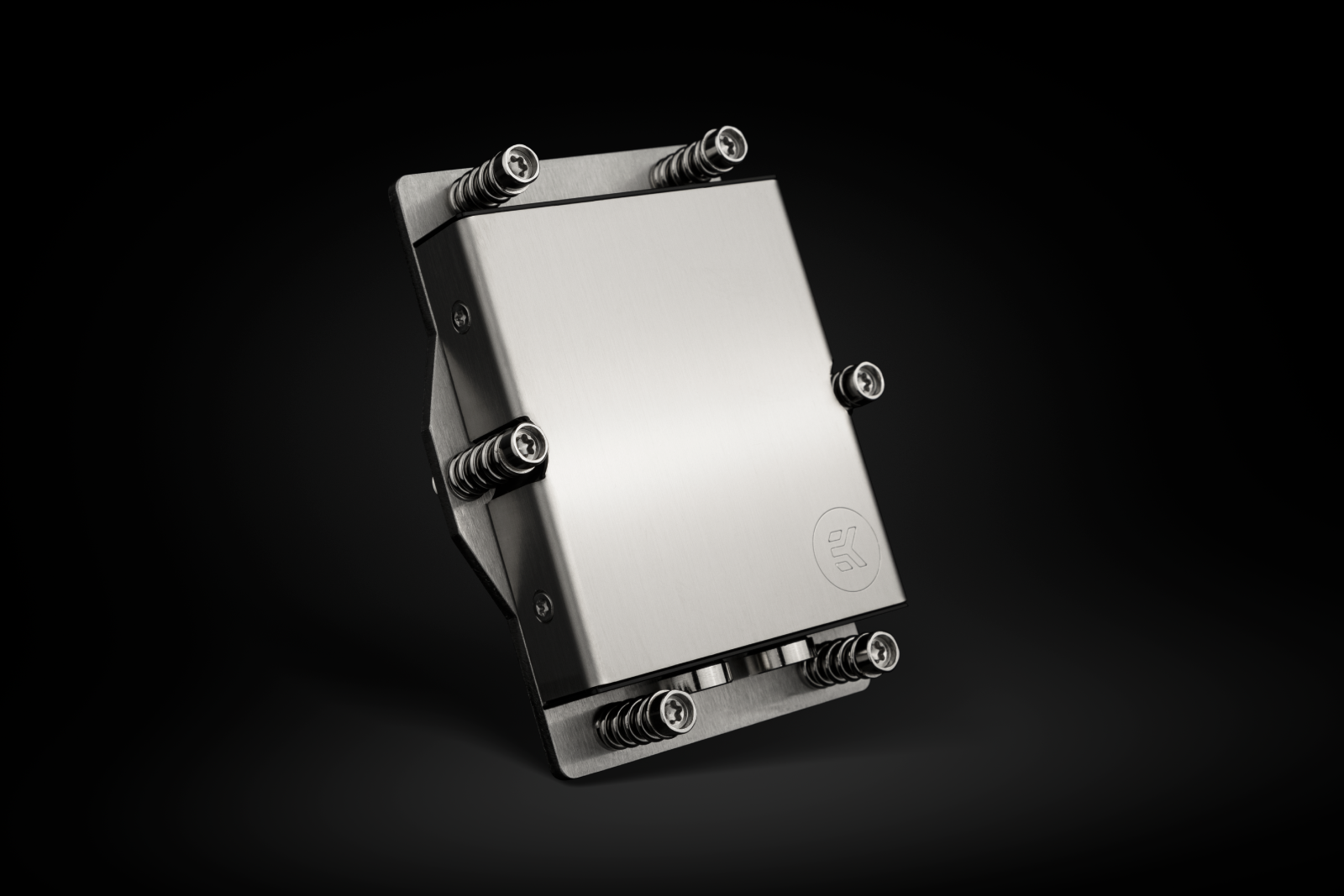

The EK-Pro CPU WB SP5 Rack Ni + Acetal is a high-performance water block designed for AMD socket SP5-based processors with up to 96 cores and 192 threads. Specifically built for 1U chassis compatibility, it is ideal for liquid cooling in dual-socket server environments.

Featuring four G1/8" threaded side ports, it offers seamless connectivity and top thermal performance. Constructed with a pure copper base, nickel electroplating, black POM Acetal top, and stainless steel bracket, it ensures durability and reliability for high-density computing systems.

1U Liquid Cooling for AMD EPYC SP5 in Dual-Socket Servers

Key Engineering

Three design decisions worth calling out

1U Dual-Socket Compatible

Sized and ported for 1U chassis running dual AMD EPYC SP5 processors, where low-profile side-port access is required to maintain chassis height compliance.

Four Side-Mounted G1/8" Ports

Quad port layout provides independent inlet, outlet, and redundant connections for dual-socket loops, enabling flexible coolant distribution across both sockets.

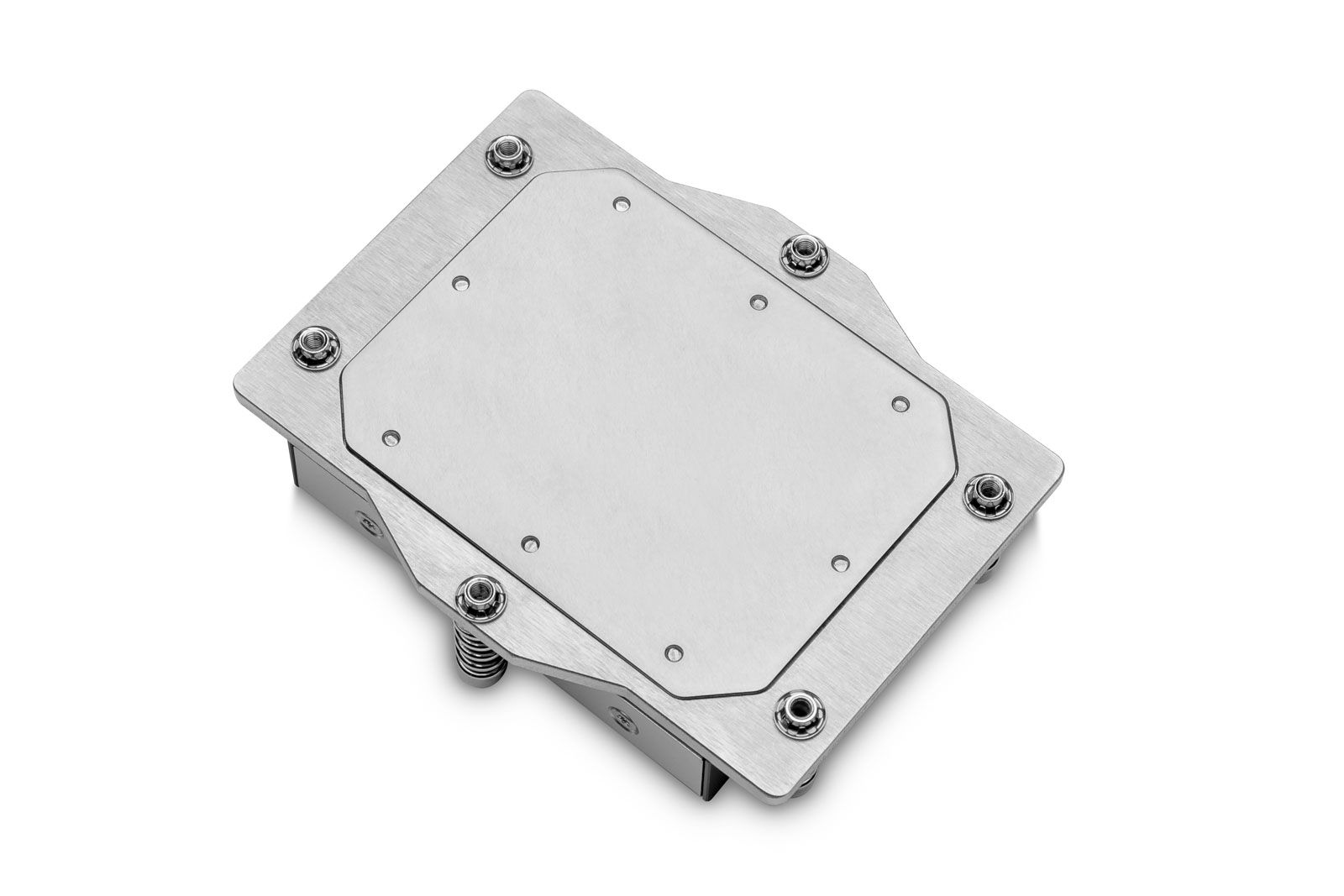

Copper Base + Stainless Steel Bracket

Nickel-plated copper base and stainless steel hold-down bracket with T20 Torx fasteners deliver long-term structural integrity and consistent thermal interface pressure.

Technical data

Full datasheet

Dimensions (L x H x W)	116.8 x 92.4 x 22.2 mm
Materials	Nickel-plated copper, stainless steel, POM
Mass	0.585 kg
Ports	4 x G1/8"

Mounting method	T20 Torx
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent components and chassis walls before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Socket Compatibility

Compatible with AMD Socket SP5 (LGA 6096), including AMD EPYC Genoa processors with up to 96 cores. Designed specifically for 1U dual-socket rack server chassis.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro CPU WB SP5 Rack Ni + Acetal water block
· 2x EK plug G 1/8”
· EK-Loop Multi Allen Key (6mm, 8mm, 9mm)
· 1x Torx T30 Key - 1x 5mm Allen Key
· Thermal grease (1g)

1U Cooling for AMD EPYC SP5 Dual-Socket Servers

Pair with EK-Pro Pump Reservoir Manifolds and QDC kits for a fully serviceable, rack-optimised liquid cooling deployment on AMD EPYC SP5 platforms.
