EK-Pro CPU WB sTR Rack - Nickel + Acetal

Product EAN: 3831109844076

Server-grade water block designed for 1U chassis compatibility, specifically for AMD EPYC and AMD Ryzen Threadripper processors.

Compatibility: AMD Socket sTRX4 (Socket SP3r3), AMD Socket TR4 (Socket SP3r2), AMD Socket SP3, AMD Socket sTR5, AMD Socket SP6
Platform: AMD

Overview

1U-Compatible Cooling for AMD EPYC and Threadripper

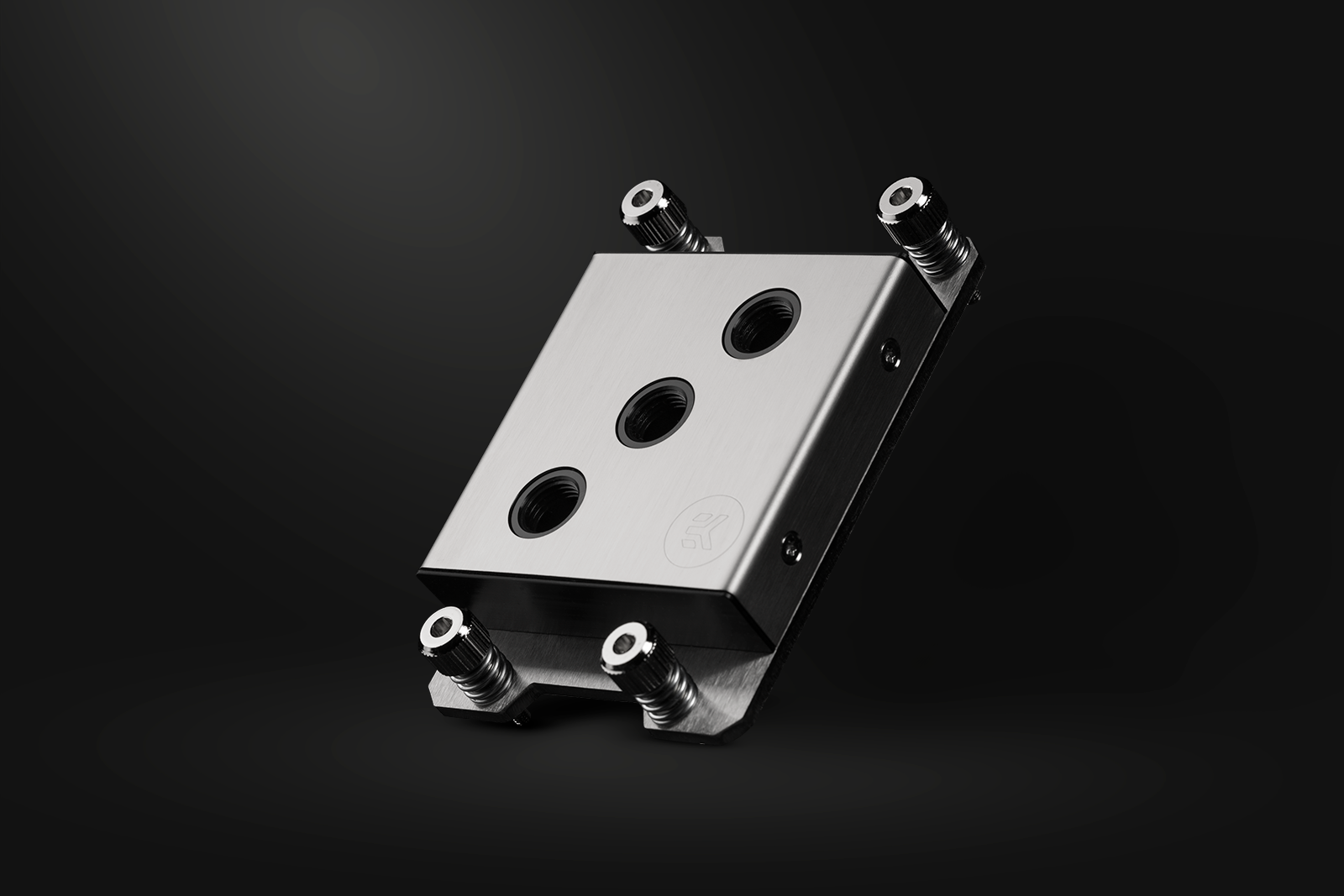

The EK-Pro CPU WB sTR Rack - Nickel + Acetal is a server-grade water block designed for 1U chassis compatibility, specifically for AMD EPYC and AMD Ryzen Threadripper processors. Its compact design utilizes two G1/4"-threaded side ports for vertical space efficiency.

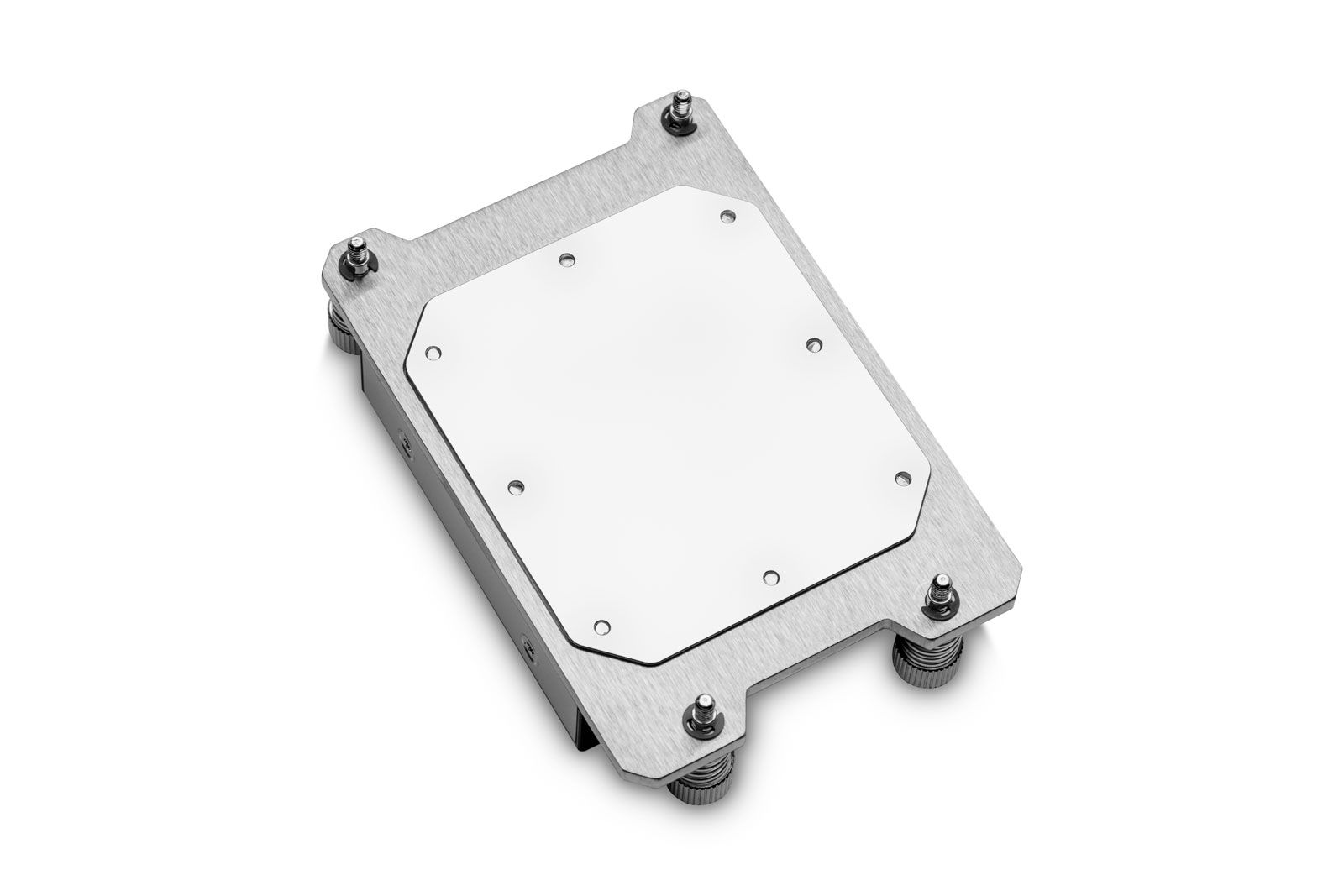

Featuring a dense micro-fin structure, it covers the entire CPU Integrated Heat Spreader (IHS) for improved cooling performance. Crafted with a CNC-machined POM Acetal top and a pure copper base with nickel electroplating, it ensures durability and efficient heat transfer. With a pre-assembled mounting mechanism, installation onto SocketTR4 mounting holes is seamless.

1U-Compatible Cooling for AMD EPYC and Threadripper

Key Engineering

Three design decisions worth calling out

Dense Micro-Fin Structure

Covers the entire CPU IHS surface area for uniform heat extraction across the full die footprint of AMD EPYC and Threadripper processors.

1U Chassis Compatible

Side-mounted G1/4" ports minimize vertical height, enabling installation in 1U rack chassis without compromising loop connectivity or flow.

CNC-Machined Nickel-Plated Copper

Pure copper base with nickel electroplating ensures long-term corrosion resistance and thermal conductivity. CNC-machined POM Acetal top provides chemical and mechanical durability.

Technical data

Full datasheet

Dimensions (L x H x W)	116.8 x 85.37 x 26.2 mm
Materials	Nickel-plated copper, POM, carbon steel
Mass	0.461 kg
Ports	2 x G1/4"

Mounting method	2.5 mm Allen key
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

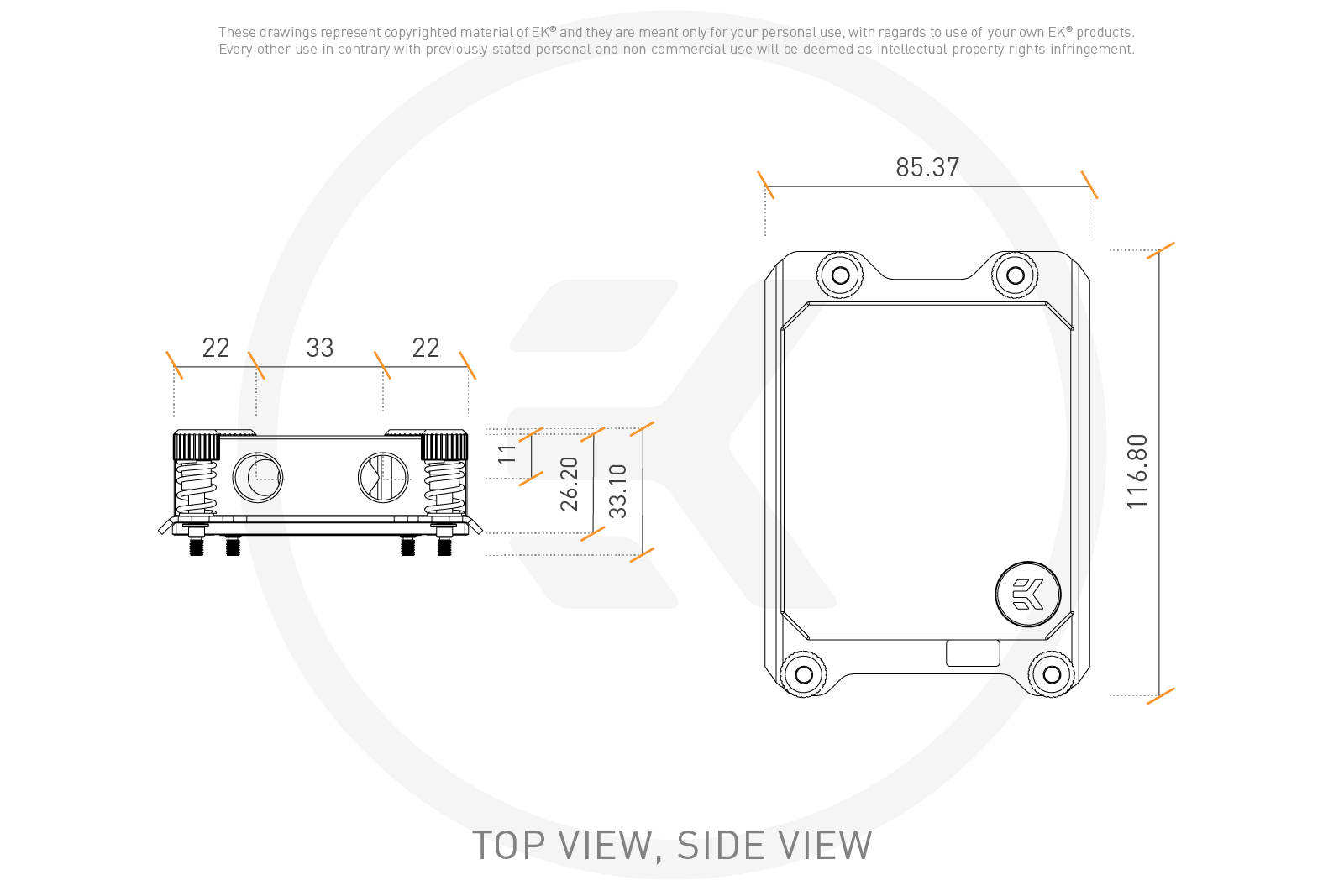

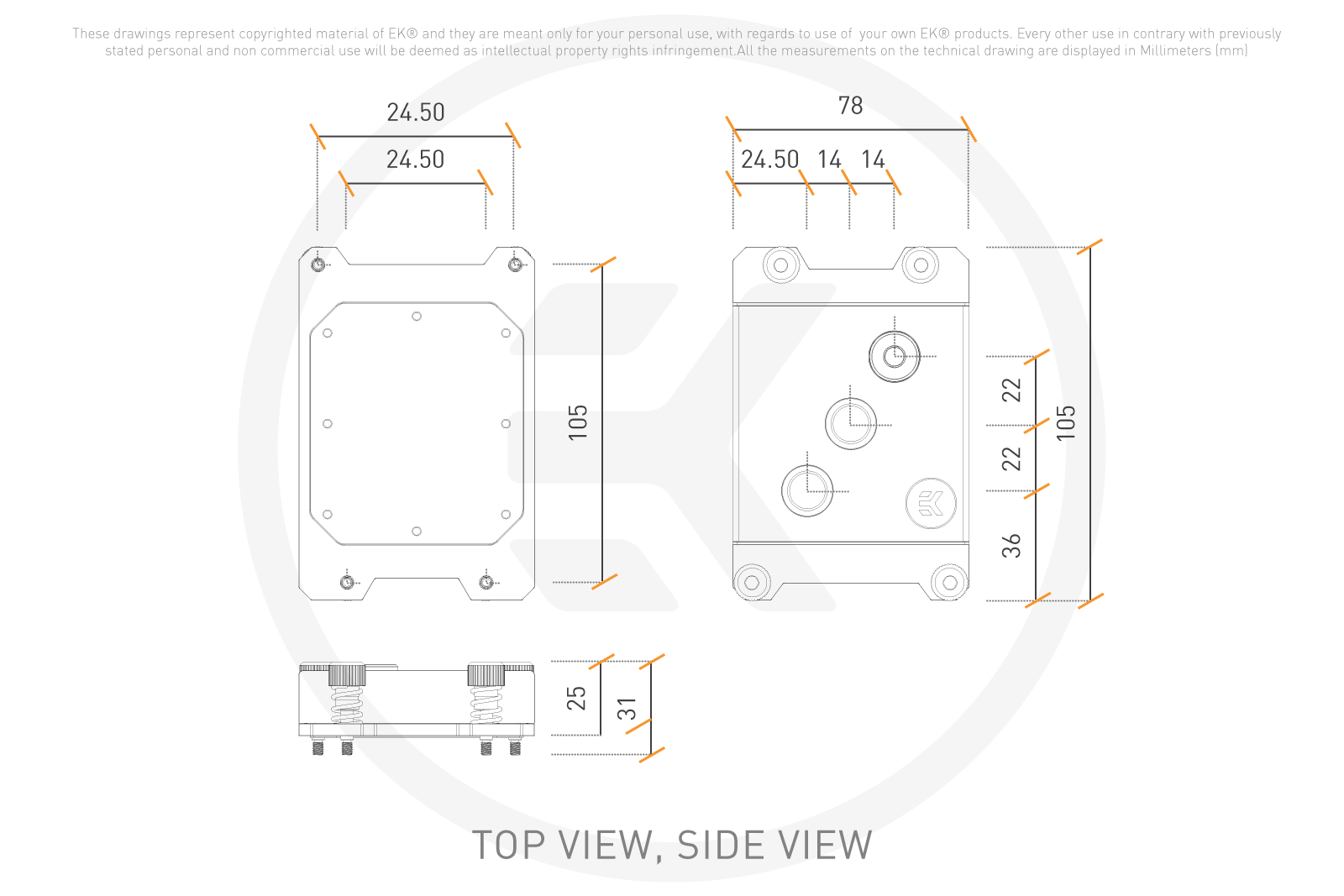

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent components and chassis walls before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Socket Compatibility

Compatible with AMD Socket sTRX4 (SP3r3), TR4 (SP3r2), SP3, sTR5, and SP6. Suitable for both AMD EPYC and Ryzen Threadripper processor platforms in 1U server and rack-mount workstation chassis.

Contact Team

In the Box

Shipped contents

· 1× EK-Pro CPU WB sTR Rack - Nickel + Acetal water block
· 1× Pre-assembled mounting hardware for SocketTR4
· 1× Installation manual

Enterprise CPU Cooling for AMD EPYC and Threadripper

Pair with an EK-Pro Pump Reservoir Manifold and radiator for a complete, serviceable liquid cooling loop in your 1U server or workstation chassis.
