Data centre

EK-Pro GPU WB H200 NVL Nickel + Inox

Product EAN: 3831129901704

Compatibility: NVIDIA® H200 NVL Tensor Core
Form factor: rack

Overview

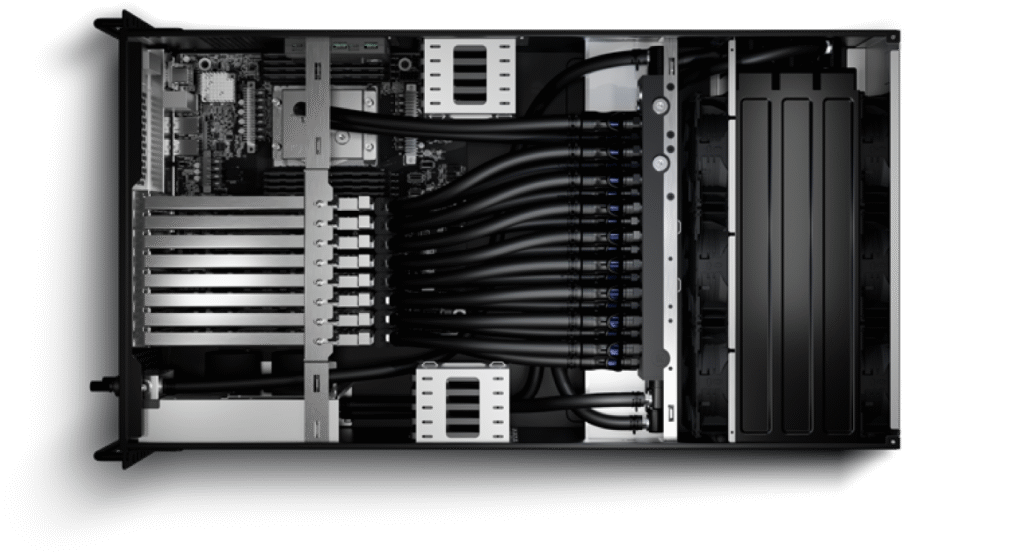

A full-cover block for a best-in-class HPC rack

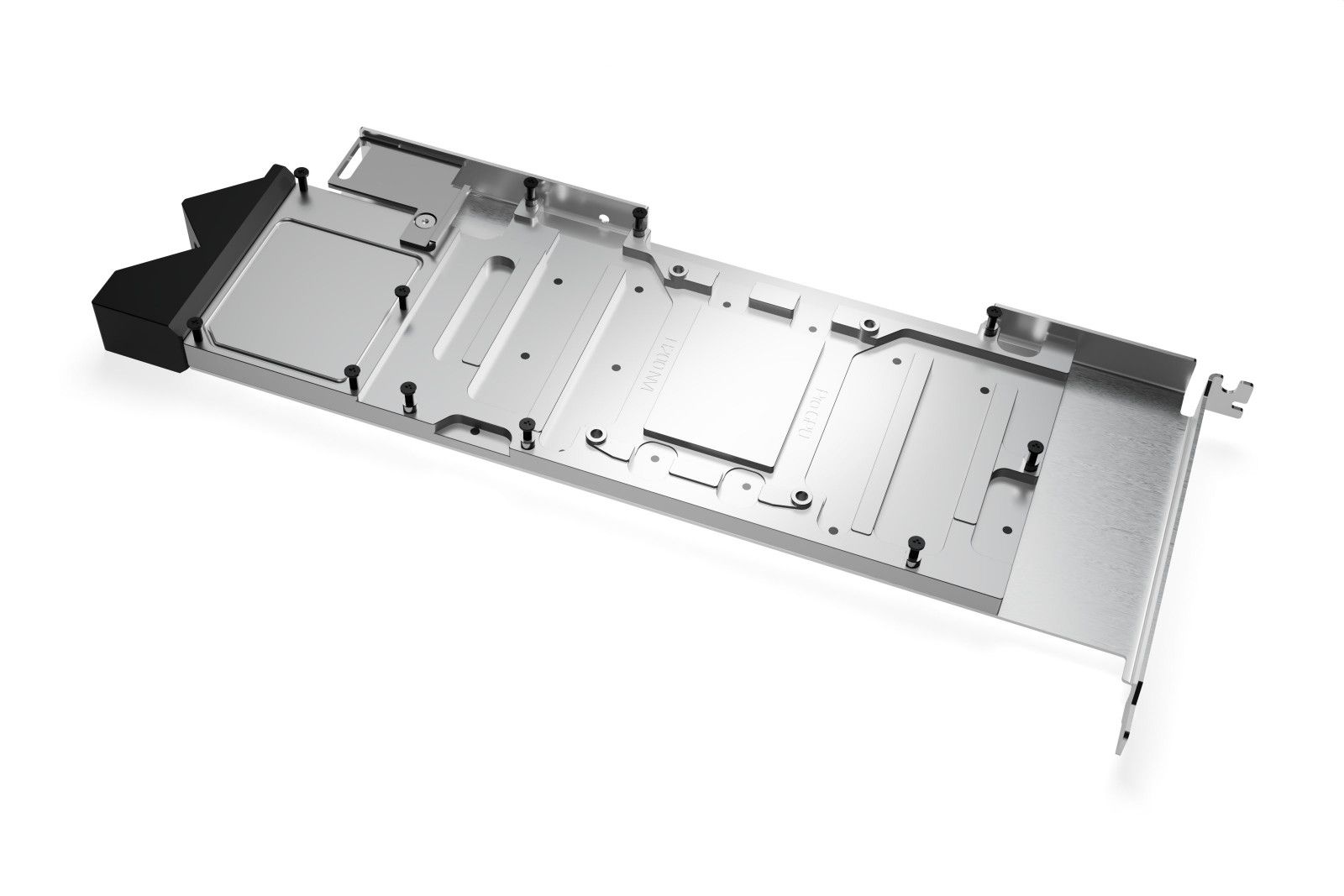

The EK-Pro GPU WB H200 NVL Nickel + Inox is a water block designed for the NVIDIA® H200 NVL Tensor Core PCIe data centre GPU. The block occupies a single PCIe slot and uses a rack-style terminal to maintain compatibility with FHFW server chassis.

The dual-pass cooling engine covers the GPU die, HBM VRAM, and VRM under one block body. A POM-machined terminal block carries two G1/4″ ports for direct integration with EK-Pro QDC kits. The retention backplate provides structural rigidity against PCB flex under loop pressure and chassis vibration.

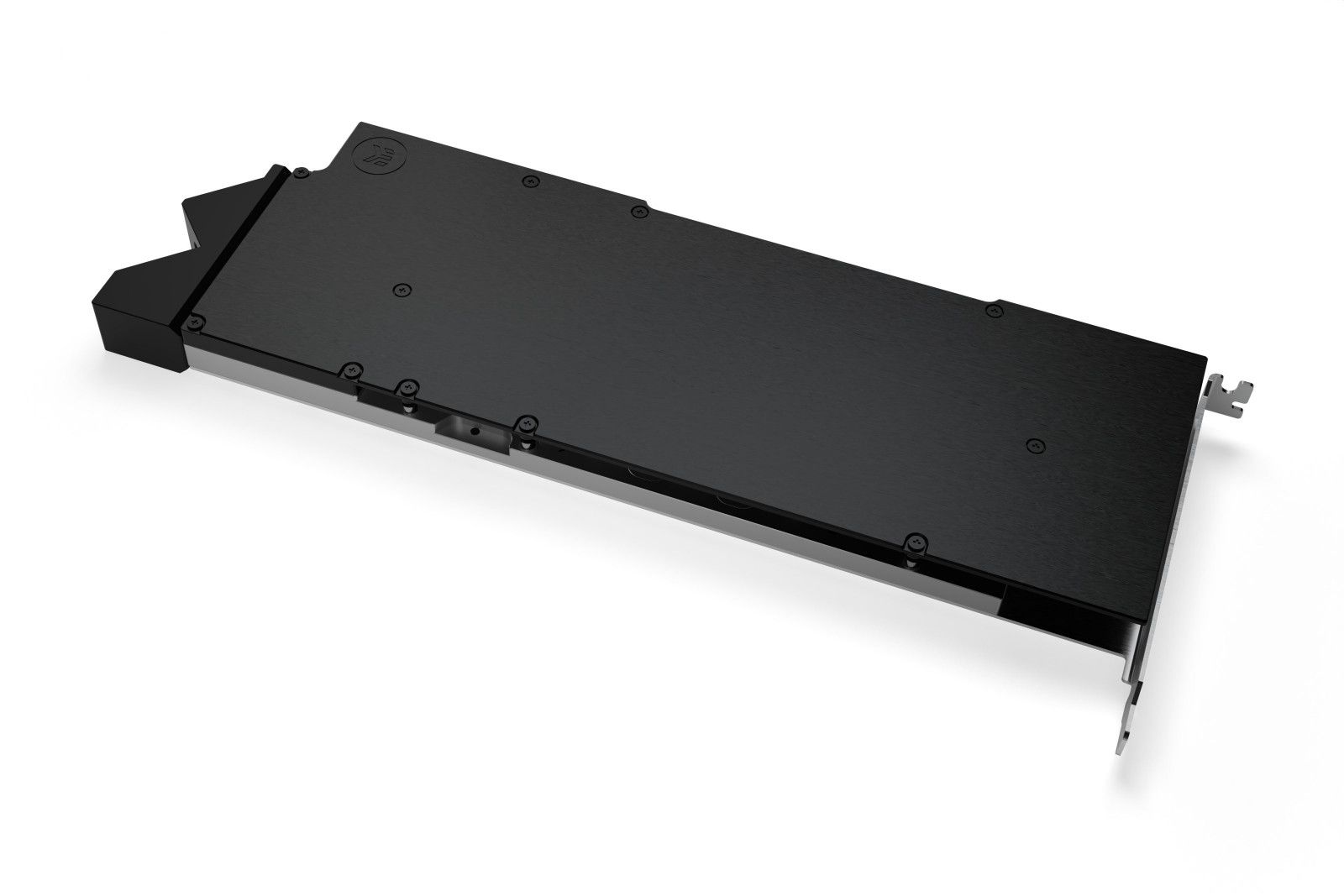

Construction is CNC-machined nickel-plated copper base and laser-cut stainless-steel top with pre-installed brass standoffs and EPDM O-ring sealing throughout.

A full-cover block for a best-in-class HPC rack

Key Engineering

Three design decisions worth calling out

Dual-pass channel geometry

The dual-pass internal channel routes coolant across the full PCB footprint twice before exiting, increasing dwell time over the HBM VRAM stack and VRM zone. This is relevant for the H200 NVL where the HBM thermal load is spatially separated from the GPU die contact area.

FHFW rack-style terminal

The rack-style terminal block routes the G1/4″ ports toward the chassis rear panel, keeping the coolant path within the vertical envelope of standard FHFW server chassis. Pre-installed brass standoffs and EPDM O-ring sealing are included.

Pressure envelope

Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. Figures are consistent across the GPU water-block family.

Technical data

Full datasheet

Compatibility	NVIDIA® H200 NVL Tensor Core
Form factor	FHFW rack (single PCIe slot)
Dimensions	315 × 127 × 22 mm
Mass	1.298 kg
Ports	2 × G1/4″
Base material	Nickel-plated copper
Top material	Stainless steel
Terminal	POM Acetal

Seals	EPDM O-rings
Mounting method	Backplate
Working pressure	2 500 Pa
Max pressure (with EK-Pro PRM)	30 000 Pa
Max pressure (standalone)	75 000 Pa
Operating temperature	5 – 60 °C
EAN	3831129901704

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

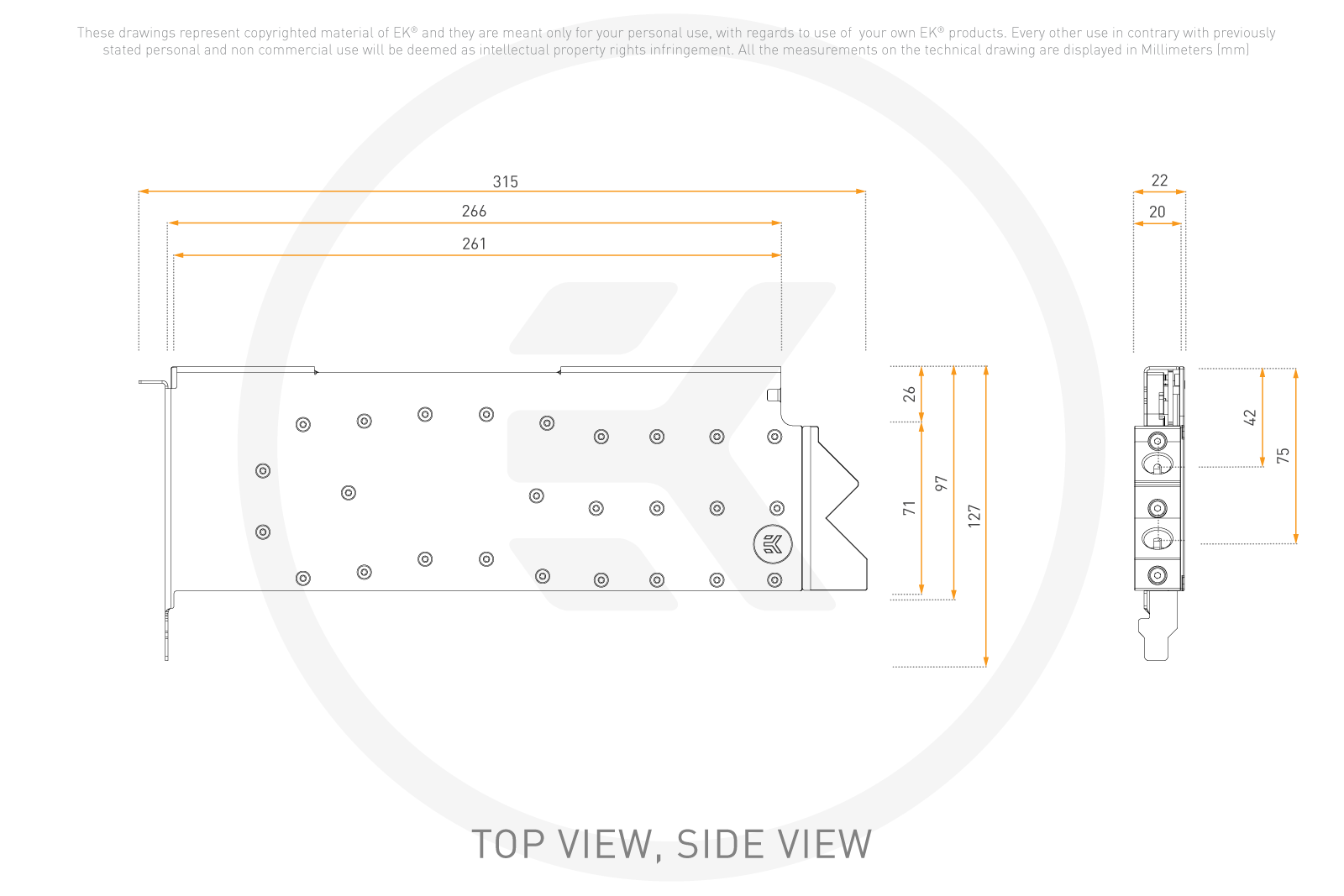

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

Nvidia H200 NVL

Contact Team

In the Box

Shipped contents

· EK-Pro GPU WB H200 NVL - water block
· Retention backplate
· Mounting mechanism with screw-in brass standoffs
· Necessary mounting screws, nuts, and washers
· Thermal Interface Material

Other related products

H100 NVL Rack

Data centre

Specifying this block into a loop?

Talk to an engineer Back to family
