EK-Pro GPU Zotac RTX 5090 Nickel + Inox

Product EAN: 3831129901421

Compatibility: ZOTAC Gaming GeForce RTX 5090 Solid
ZOTAC GAMING GeForce RTX™ 5090 SOLID OC
Form factor: workstation

Overview

Zotac RTX 5090

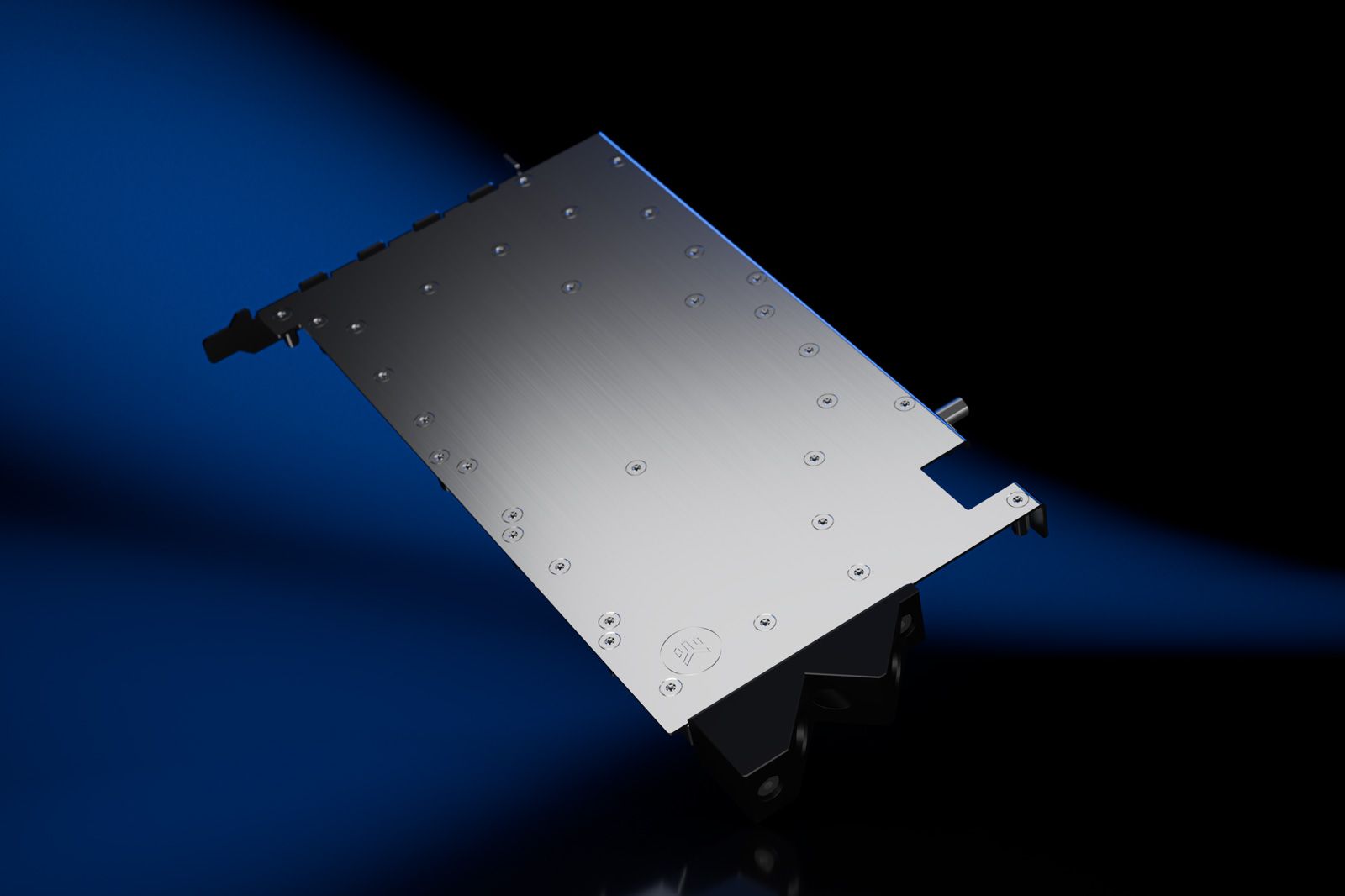

The EK-Pro GPU Zotac RTX 5090 Nickel + Inox is a high-performance water block designed specifically for the ZOTAC GAMING GeForce RTX™ 5090 SOLID OC graphics card. It cools the GPU die, VRAM, and VRM efficiently with low hydraulic flow restriction, making it compatible with modest pump setups in compact workstation builds.

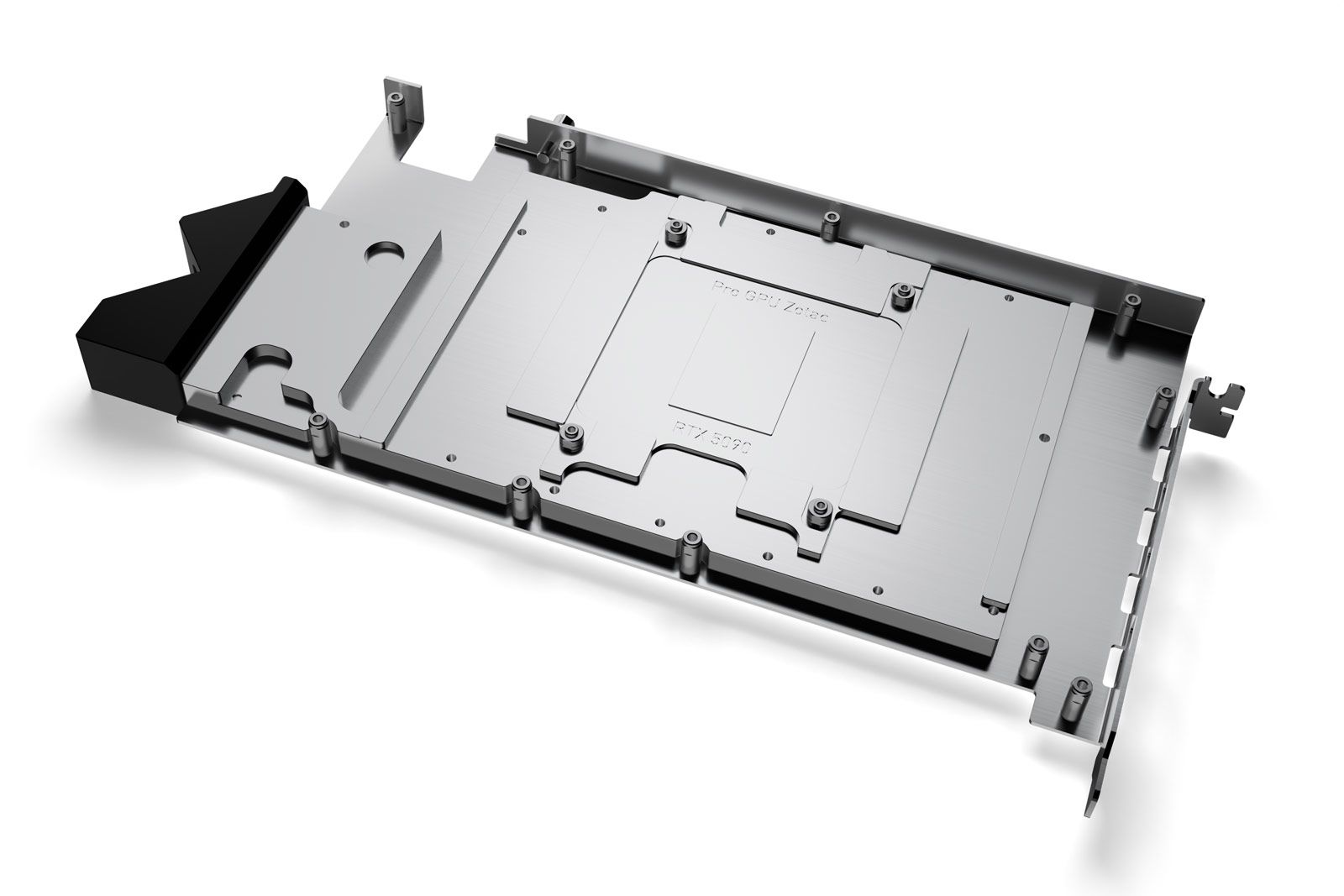

The block occupies a single PCIe slot width — a deliberate design decision for workstations where adjacent slot clearance is a constraint. A nickel-plated copper base contacts the die and VRAM directly, with a stainless-steel top and POM Acetal side-terminal block. Pre-installed brass standoffs on the retention backplate simplify installation to a direct replacement of the stock air cooler.

Integration with EK-Pro QDC kits and manifolds is built in via two G1/4″ ports on the terminal block, supporting high compute-density applications where the cooling loop services multiple cards from a single manifold.

Key Engineering

Three design decisions worth calling out

Single-slot workstation profile

The block is machined to a 20 mm depth and single PCIe slot width, making it the correct choice for compact workstation chassis where a two-slot block would obstruct an adjacent PCIe device. Despite the reduced depth, full-cover contact across GPU die, VRAM, and VRM is maintained.

QDC kit and manifold compatible

Two G1/4″ ports on the side terminal block provide direct integration with EK-Pro Quick Disconnect kits and the full manifold range. This allows the card to be removed from a populated loop without draining — a meaningful operational advantage in workstations serviced in the field.

Pressure envelope

Working pressure is 2 500 Pa. Maximum rated pressure is 30 000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, and 75 000 Pa in all other configurations. These figures are published at the supplier level and are consistent across the GPU water-block family.

Technical data

Full datasheet

Compatibility	ZOTAC Gaming GeForce RTX 5090 Solid ZOTAC GAMING GeForce RTX™ 5090 SOLID OC
Form factor	Full-height workstation (PCIe, 1-slot)
Dimensions	264 × 124 × 20 mm
Mass	1.482 kg
Ports	2 × G1/4″
Base material	Nickel-plated copper
Top material	Stainless steel
Terminal	POM Acetal

Seals	EPDM O-rings
Mounting method	Backplate
Working pressure	2 500 Pa
Max pressure (with EK-Pro PRM)	30 000 Pa
Max pressure (standalone)	75 000 Pa
Operating temperature	5 – 60 °C
EAN	3831129901421

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm. Use this to verify clearance to adjacent PCIe slots, to the chassis floor, and to any rear I/O before specifying.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro. A CAD step file of the full block assembly is available to partners on request.

Compatibility

ZOTAC Gaming GeForce RTX 5090 Solid

ZOTAC GAMING GeForce RTX™ 5090 SOLID OC

Contact Team

In the Box

Shipped contents

· EK-Pro GPU Zotac RTX 5090 workstation and server-grade water block
· Mounting mechanism with screw-in brass standoffs
· Necessary mounting screws, nuts, and washers
· Thermal Interface Material
