EK-Pro Pump Reservoir Manifold X6 D5 - Acetal

Product EAN: 3831109910399

3-in-1 pump, reservoir, and manifold supporting up to six directly connected components, with a genuine PWM D5 pump, 220ml reservoir, and 14 G1/4" ports including fill and QDC drain.

Type: combo
Compatibility: EK-Pro GPU and CPU water blocks with G1/4" ports

Overview

3-in-1 Pump, Reservoir, and Manifold for Six-Component Loops

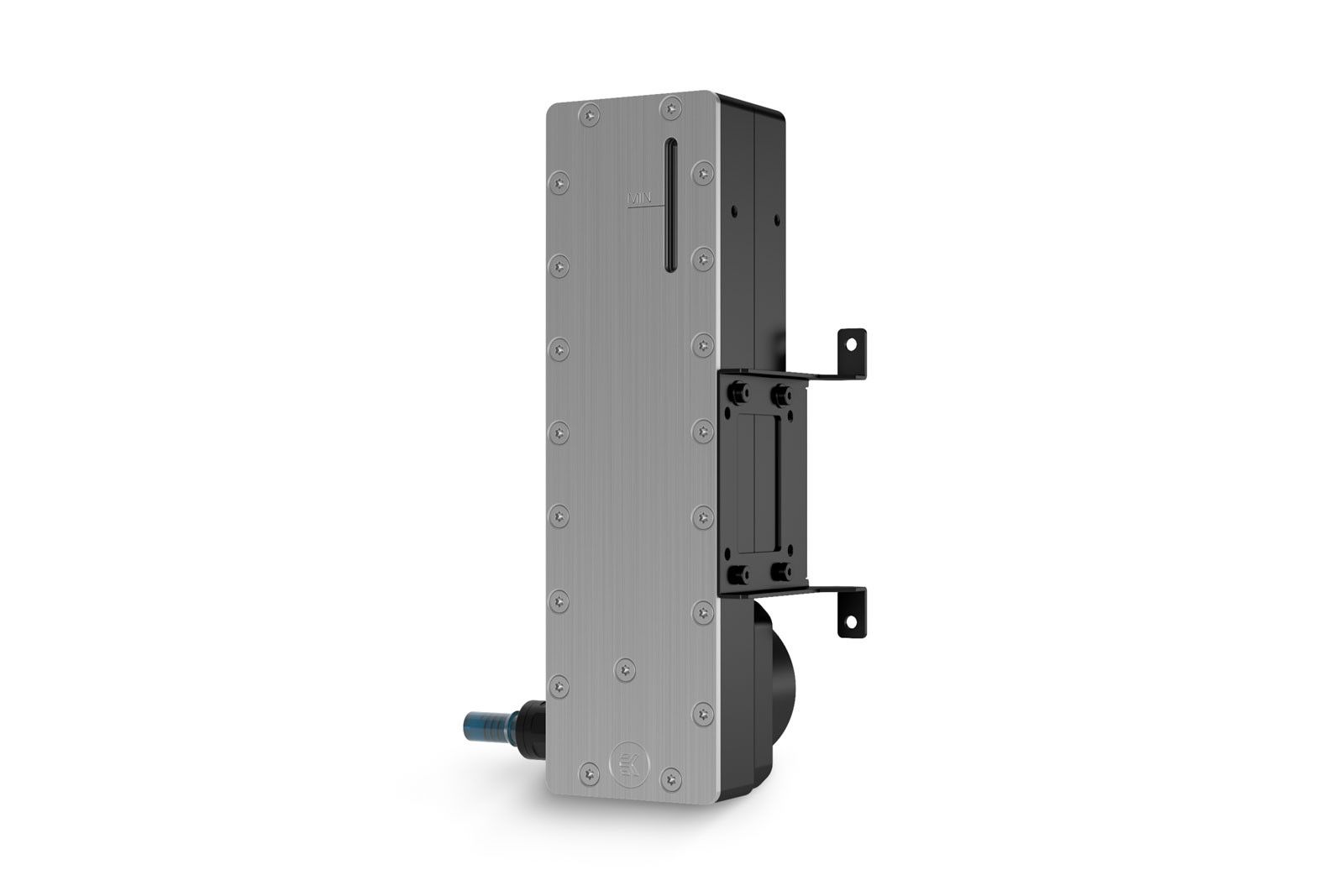

The EK-Pro Pump Reservoir Manifold X6 D5 - Acetal is a versatile 3-in-1 unit, functioning as a pump, reservoir, and manifold. It supports up to six components directly connected as a manifold and features a powerful, quiet PWM-controlled D5 pump.

With 14 G1/4" ports, including dedicated fill and drain ports, it offers ample connectivity. The inclusion of a drain port with Quick Disconnect Coupling simplifies system maintenance. Constructed primarily from durable Black POM acetal, it ensures longevity and reliability.

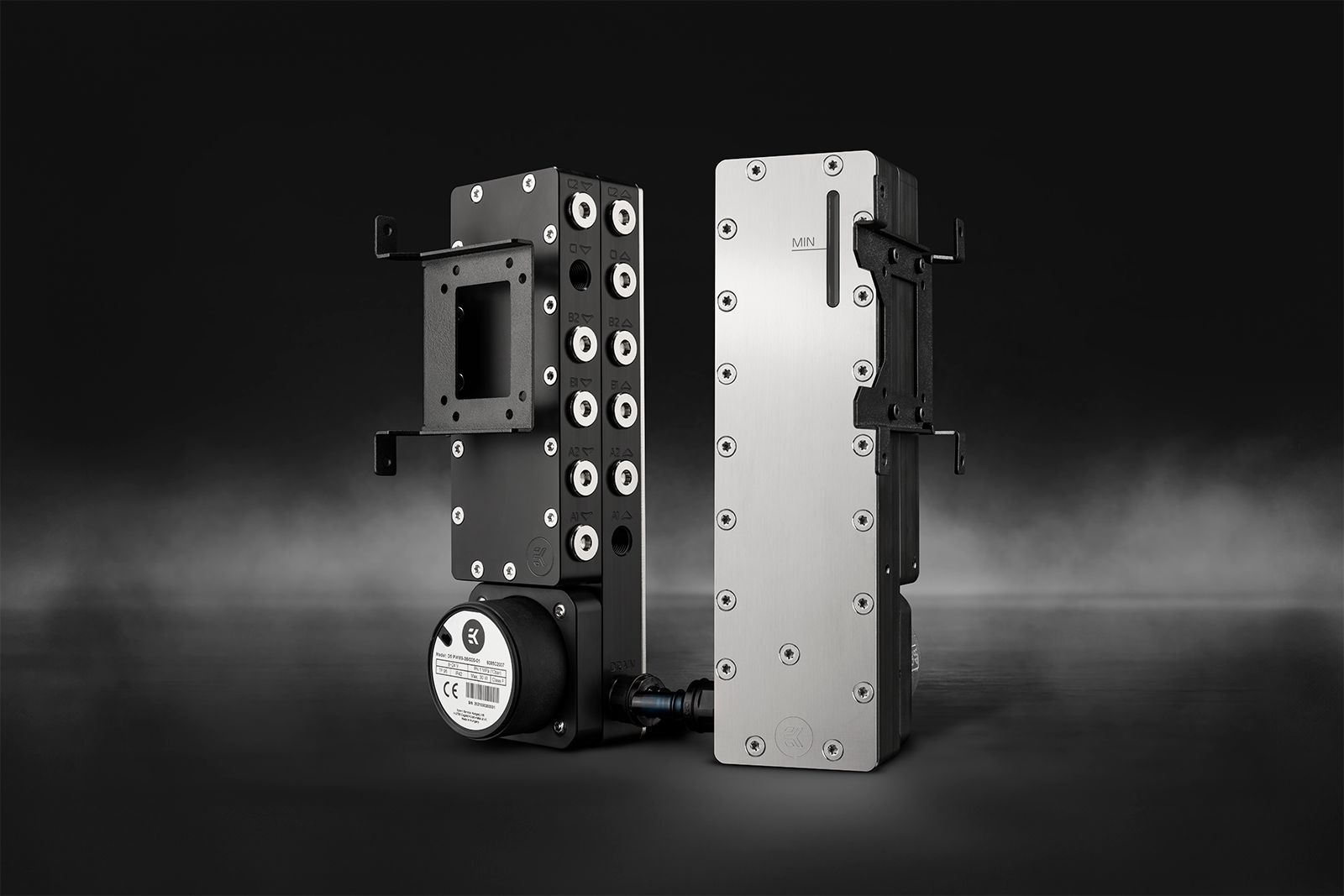

3-in-1 Pump, Reservoir, and Manifold for Six-Component Loops

Key Engineering

Three design decisions worth calling out

PWM D5 — 3.9m Head, 1500 L/h

Single PWM-controlled D5 pump with electronically commuted spherical motor delivers the pressure head and flow rate required to drive two CPU blocks, two GPU blocks, and two radiators in a single loop.

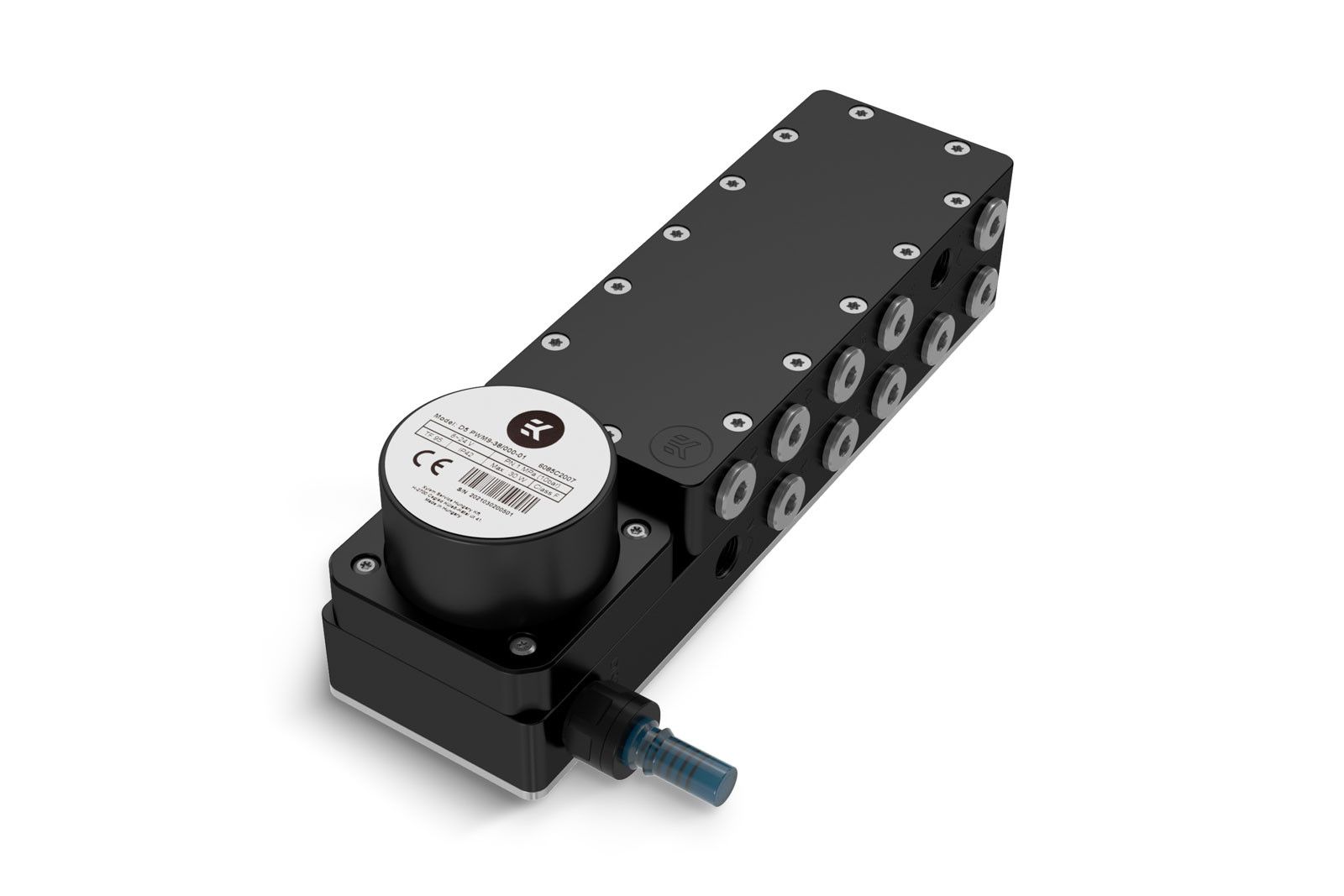

14-Port Pre-Defined Loop Layout

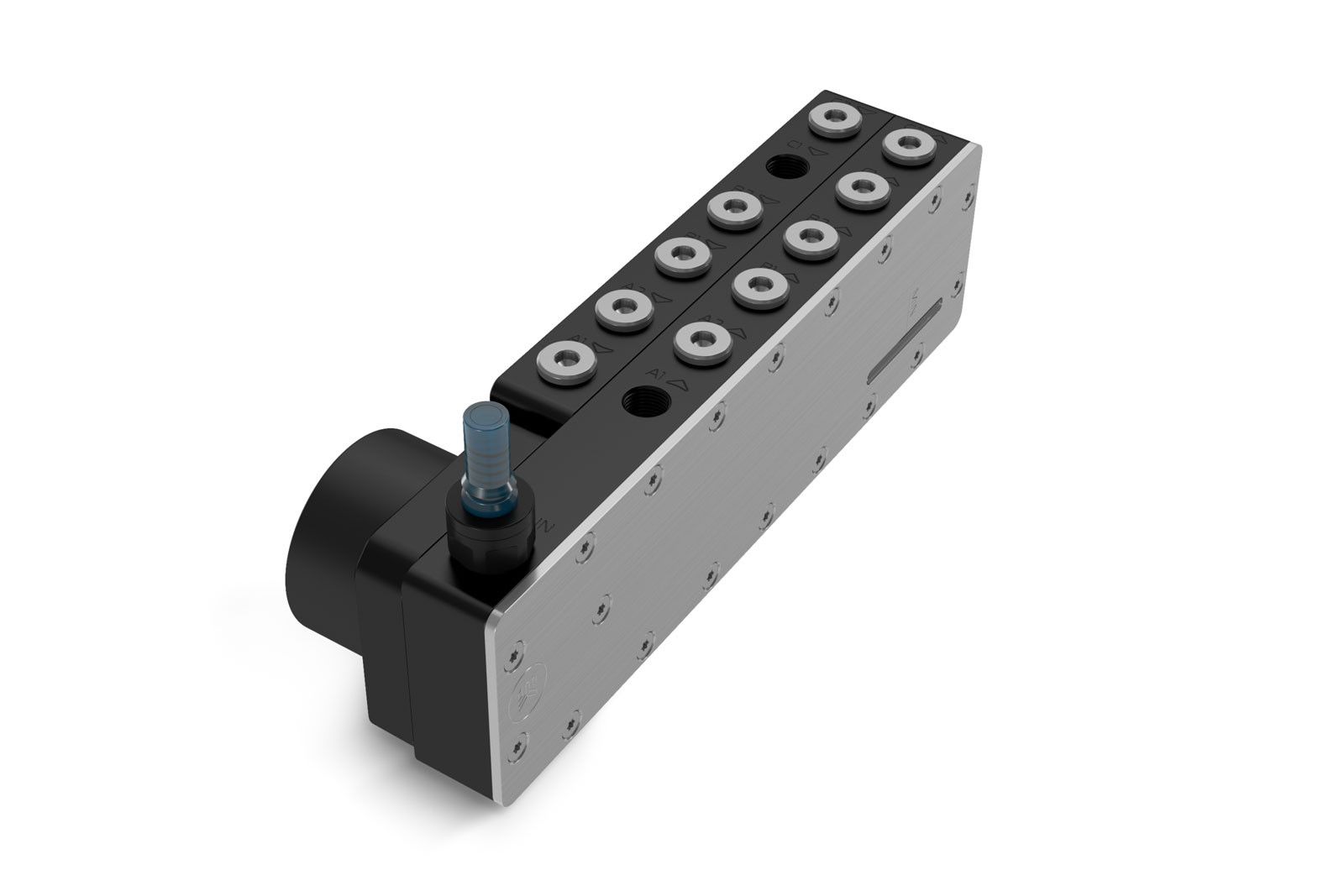

Twelve loop ports pre-configured for two CPU water blocks, two GPU water blocks, and two radiators, with one dedicated fill port and one QDC drain port for straightforward loop build and maintenance.

220ml Acetal Reservoir with Acrylic Window

220ml coolant volume provides adequate thermal buffer and fill capacity for dual-CPU dual-GPU loops. Acrylic viewing panel allows coolant level and condition monitoring without disassembly.

Technical data

Full datasheet

Dimensions (L x H x W)	115 x 253 x 75 mm (without the mounting system)
Reservoir materials	POM, stainless steel, nickel plated brass, ABS, EPDM, acrylic
Pump motor materials	Stainless steel, PPS-GF40, EPDM O-rings, aluminium oxide, hard coal
Mass	1.786 kg
Reservoir coolant volume	220 ml
Ports	14 x G1/4" – 12x for 2x CPU, 2x GPU, 2x radiators; 1x fill port; 1x QDC drain port
Mounting method	Bracket
Motor	Electronically commuted spherical motor
Rated voltage	12 V DC

Power consumption	23 W
Maximum pressure head	3.9 m
Maximum flow	1500 L/h
Power connector	SATA and 4-pin PWM FAN connector
PWM duty cycle	~20–100%
Default behaviour	Runs at 100% duty cycle when no PWM feedback signal is present
Working pressure	2500 Pa
Maximal working pressure	30000 Pa in loops containing an EK-Pro Pump Reservoir Manifold, otherwise 75000 Pa
Operating temperature range	5 – 60 °C

All figures measured at supplier level. Third-party independent measurement reports are available on request under NDA.

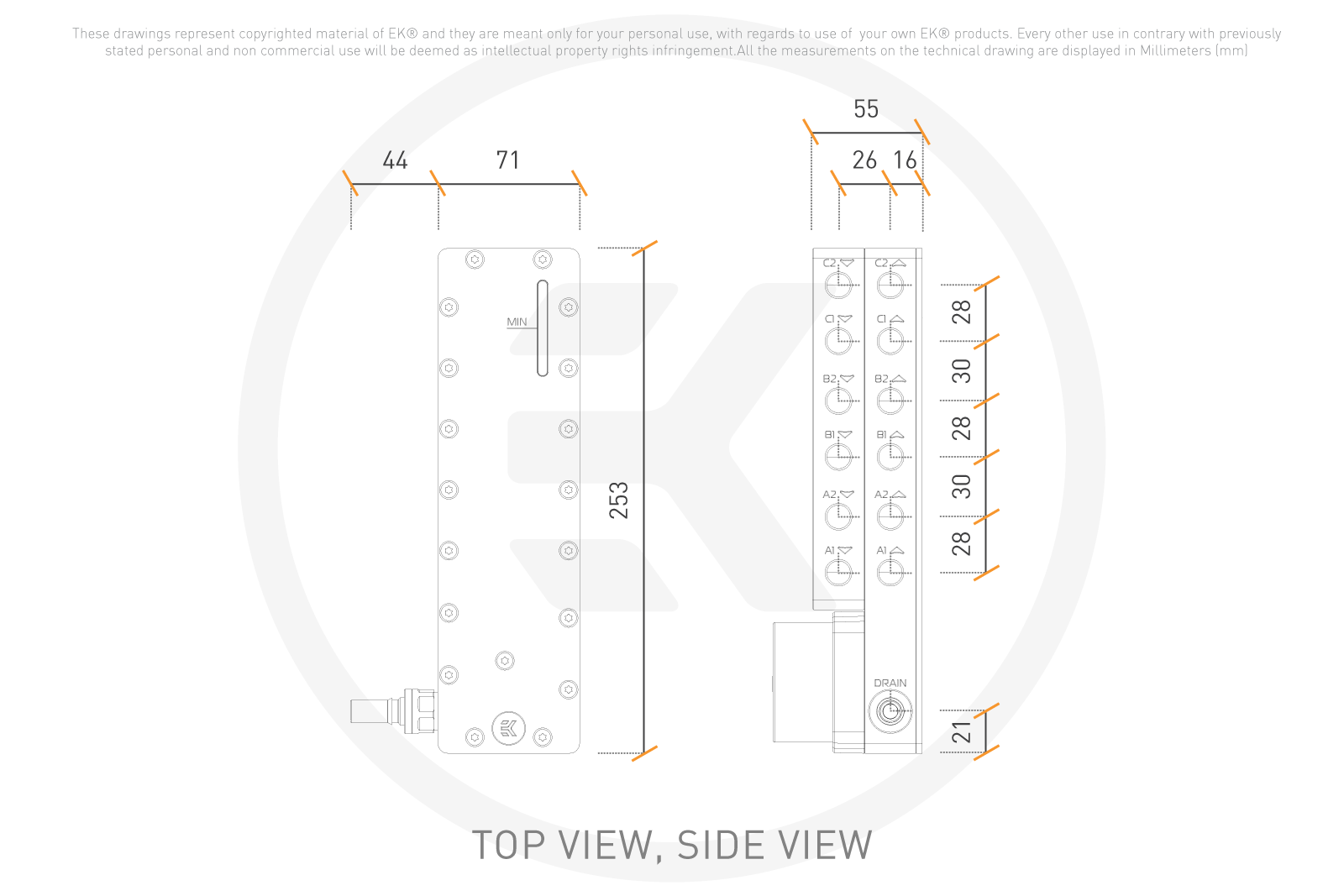

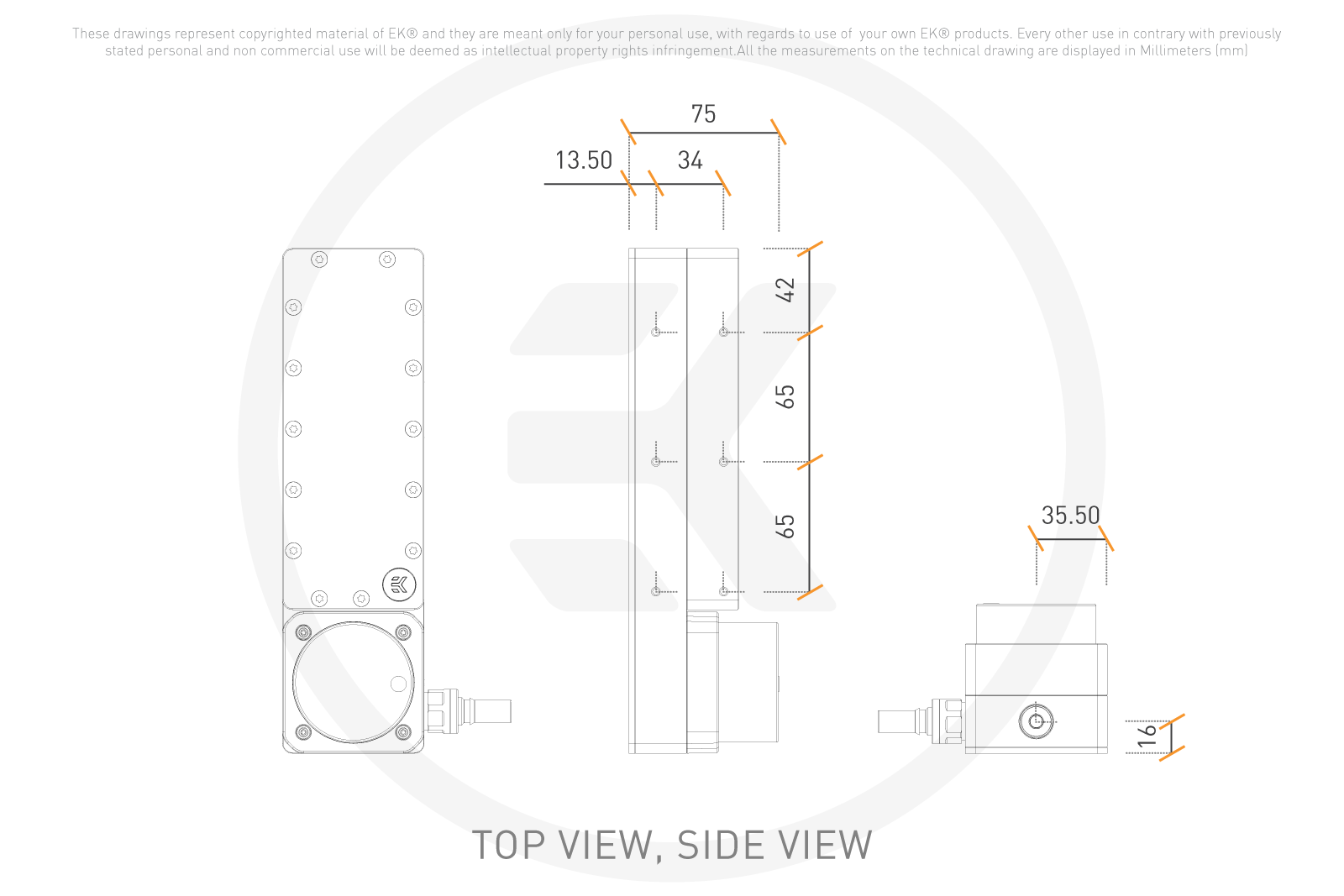

Technical drawing

Top & side view, in millimetres

Envelope drawing for chassis-integration work. All measurements in mm.

These drawings represent copyrighted material of LM TEK® and they are meant only for your personal use. Drawing supplied by EK-Pro.

Compatibility

Loop Compatibility

Supports up to two CPU water blocks, two GPU water blocks, and two radiators via 12 loop G1/4" ports. Dedicated fill and QDC drain ports included. Compatible with all EK-Pro water blocks and radiators. Powered via SATA and 4-pin PWM FAN connectors.
